Analog Meters


We are constantly expanding our product line and invite you to check our website regularly for updates.


Rest assured that we provide comprehensive product support and are available to answer any questions you may have. Our products come with a 2-year transferrable warranty, which means that if you sell your LDG product, the new owner can enjoy the same benefits by presenting a copy of the original sales receipt. There is no need to fill out a warranty card or register the product.


You can purchase all LDG products from your preferred HAM radio dealer.

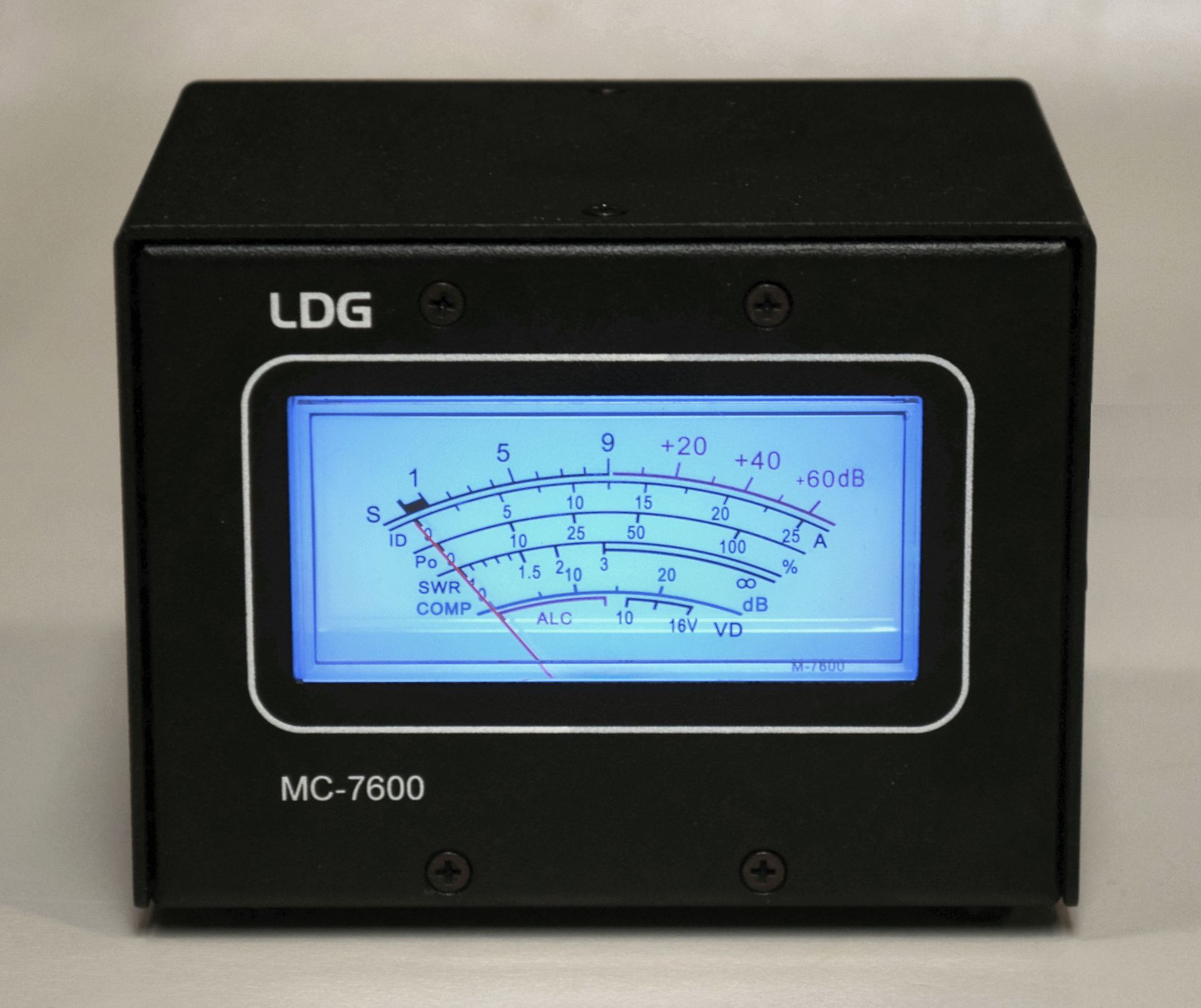

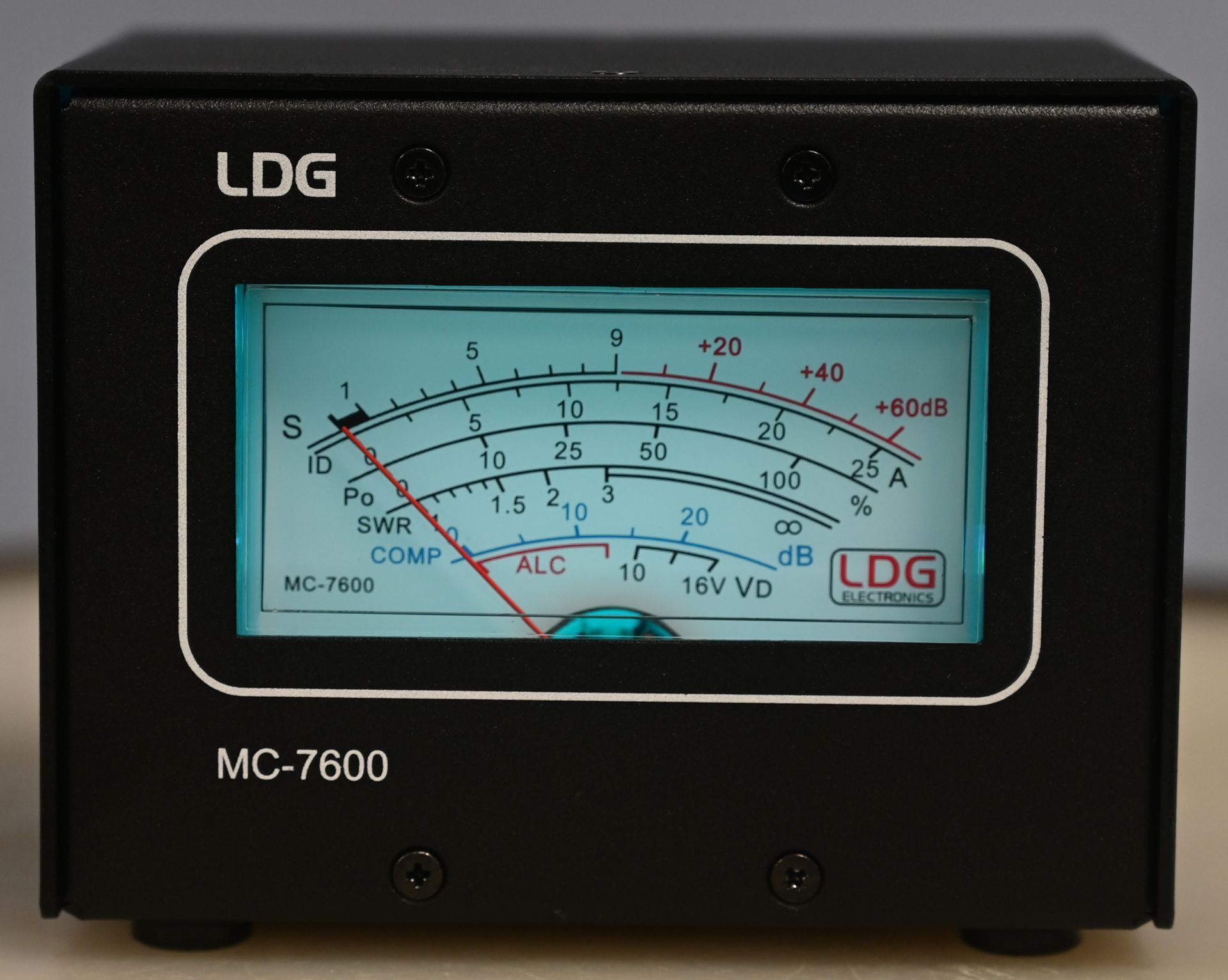

MC-7600 Meter (Single Color)

  • Description

    The LDG Color Analog Meter is a precision instrument that will provide many years of quality service. The meter provides a three-inch meter to compliment the “virtual” meter on your IC-7600’s display panel. It can show S-Meter reading, final amplifier voltage and current, power output, SWR, compression level and ALC level.


    The meter is illuminated by high-visibility color LEDs from behind. This color backlighting is very attractive, easy on the eyes during long operating sessions, and makes it a snap to read the meters precisely. Each meter has adjustments on the back for separate color and brightness settings. Be sure to read the entire manual to ensure safe operation and long life of the meter. With proper care this meter will provide many hours of enjoyable operation.


  • SPECS

    • Meter: 3.0” Illuminated Analog Meter
    • Illumination: Color LED Backlight, Adjustable Brightness
    • Radio Connection: Stereo 3.5mm TRS
    • DC Connector: 5.5x2.5mm Center Positive
    • Voltage: 13.8 VDC +/- 15%
    • Current Draw: 500 mA max
    • Size: 8.5”x3.5”x3.5” (215x90x90mm)
    • Weight: 1.5 lbs. (680 g)
    • Two Year Warranty

  • DOCS

    MC-7600 Manual
